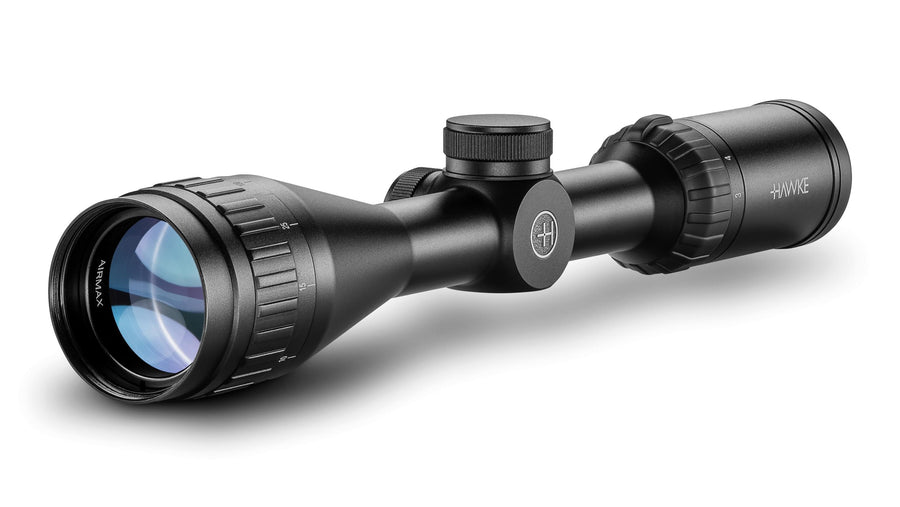

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

Capped Low-Profile Turrets
1 Inch Mono-Tube Chassis
Wide Angle
16 Layer Fully Multi-Coated Lenses
High Torque Zoom Ring
Fast Focus Eyebell
AMX Reticle Designed For Airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

Technical Specifications;

Length:	306mm 12"
Weight:	519g 18.3oz
Eye relief:	89mm 3.5"
Focus/Parallax - Adjustable Objective	9.1m - ∞ 10yds - ∞
Field of View:	12.4 - 4.5m @100m 37.2 - 13.6ft @100yds
Exit Pupil:	13-4mm 0.5-0.2"
Chassis	1″ Mono-tube
Optical System	3-9x
Objective	40mm
Illumination	N/A
Reticle	AMX
Elevation Increment	1⁄4 MOA
Elevation Adjustment Range:	80 MOA
Windage Increment	1⁄4 MOA
Windage Adjustment Range	80 MOA
Material	Aluminium
Ocular Type	Fast Focus
Lens Coating	Fully Multi-Coated - 16 Layers
Power Selector Style	Rubber Coated Posi-Grip
Focal Plane	Second Focal Plane (SFP)
Turret Caps	Yes
Turret Type	Low Profile
