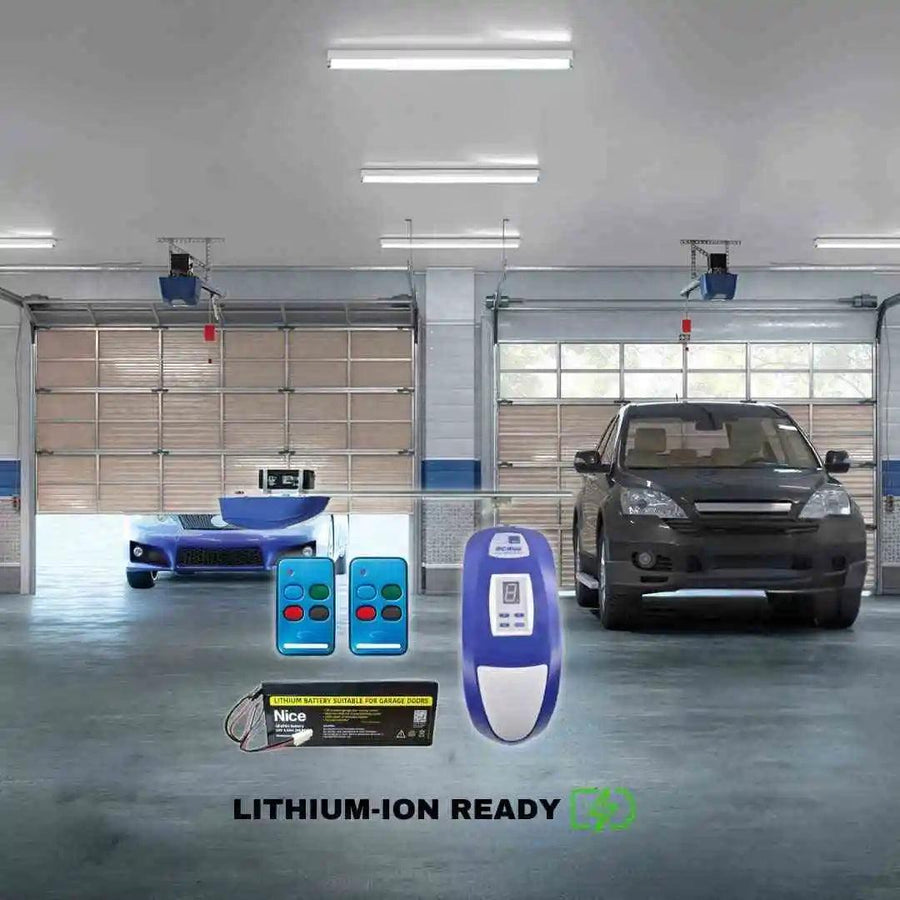

ET DC BLUE ADVANCED LIFEPO4 LITHIUM-ION SECTIONAL GARAGE MOTOR

Expertly crafted for residential sectional and trackless tip-up garage doors up to 15m2, the ET DCB ADVANCED SECTIONAL GARAGE MOTOR KIT is a comprehensive solution featuring a 3.2m rail, two 4 Button remotes, and a 24V battery for an easy and efficient access control system. Suitable for both overhead and tip-up garage doors.

WHAT'S INCLUDED:

1x DC BLUE motor
2x 4 button ET remotes
1x 3.2m shaft
1x 24v 3.5a ET lithium Ion battery

FEATURES:

ROBUST construction with metal chassis and gears
RELIABLE and proven DC Blue Advanced technology
INTELLIGENT door load profi ling for added safety and control
SIMPLE to program and fault fi nd with 7 segment LED Display
Sleek, modern design
Safety beam input
Selectable automatic closing time
LED courtesy light; optional external light control
Optional electronic lock control for added security
Built-in ET-Blu Mix® enhanced rolling code receiver - Uncrackable, Unhackable

SPECS:

Input voltage	220-240 Vac, 50Hz-60Hz
Electric motor supply	24Vdc. Not battery dependent
Maximum duty cycle with mains present	50 full cycles per 24h @ max rate of 5 per hour
Number of operations on battery reserve without AC present	100 within 24 hours (From a fully charged and healthy 3.5Ah battery)
Maximum door size	15m2
Applicable door types	Spring balanced, Sectional overhead and 1 piece tip-up doors
Maximum running distance	3m
Maximum pulling force prior to safety governing	1000N
Rated running load	40 kgf
Rated speed	8m/min
Built-in receiver frequency:	433.92MHz
Built-in receiver compatible formats	ET-Blu Mix © and ET Blue
Built-in receiver memory capacity	35 button
Built-in receiver channels	2CH (BT, Courtesy light). Holiday Lockout is with BT push and hold
