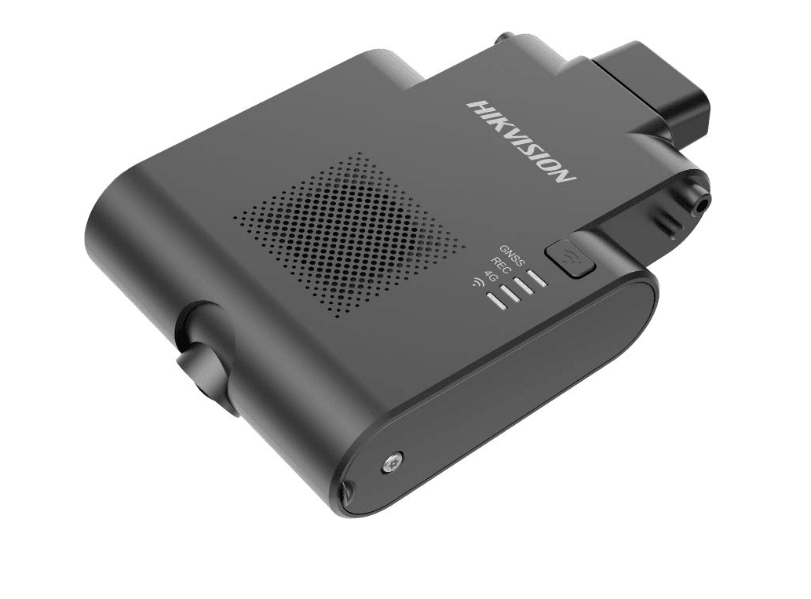

HIKVISION DASHCAM AE-DI2032-G40
This dashcam is a video and audio intelligent monitoring product for vehicle. With advanced image acquisition technology and high-definition video recording technology, it records the front vision of the vehicle. With high-fidelity sound recording technology, it synchronizes the video and audio in  the vehicle. With high-precision positioning technology, it offers excellent vehicle positioning service.  It uses intelligent AI algorithm for driving behavior monitoring, which ensures the service quality and protects the legitimate rights and interests of drivers and passengers. The dashcam combines rich
functions with excellent performance, stability, compactness, low power consumption and easy installation and maintenance. The product can be widely applied to vehicles such as ride-hailing cars, taxis, official cars and other industries cars.
FEATURES:
-
Image Sensor1/2.7'' Progressive Scan CMOS
-
Shutter Speed1/3 s to 1/100, 000 s
-
Min. Illumination0.01 Lux @ (AGC ON)
-
Focal LengthFixed focal lens, 2.1mm
-
ApertureF2.1
-
Lens MountM12
-
FOV
Horizontal FOV: 127° - Vertical FOV: 73° - Diagonal FOV: 137°
-
Audio Input1-channel audio
-
Video Input3-channel video (default: 1 channel; extension: 2 channels)
-
Video CompressionH.265,H.264
-
Audio CompressionG.711ulaw,G.711alaw,AAC
-
Main Stream
CH1: 25fps 1080P 1920 × 1080 (default) - 25fps 720P 1280 × 720
-
CH2~CH3: - 25fps 720P 1280 × 720 (default)
-
Sub- Stream
CH1: 25fps 720P 1280×720 - 25fps 480P 640×480 (default)
CH2~CH3: 25fps 480P 640×480 (default)
-
Built-In Mic:Â Omnidirectional pickup, frequency response 50-20000 Hz
-
Built-In Speaker:Â Max 1.5 W, with adjustable volume, not less than 70 dB at 1 m distance.
-
Wi-Fi Frequency:Â 2.4 GHz
-
Positioning -Â BDS (BeiDou Navigation Satellite System)
           GPS (Global Positioning System)
           GLONASS (Global Navigation Satellite System)
-
SNR -Â 37.5 dB
-
Wide Dynamic Range -Â Supports WDR
-
Image Settings -Â Adjustable brightness, chroma, contrast, color saturation, and sharpness
-
OSD -Â Date, Time, GPS, Speed, etc.
-
Alarm - Input2
-

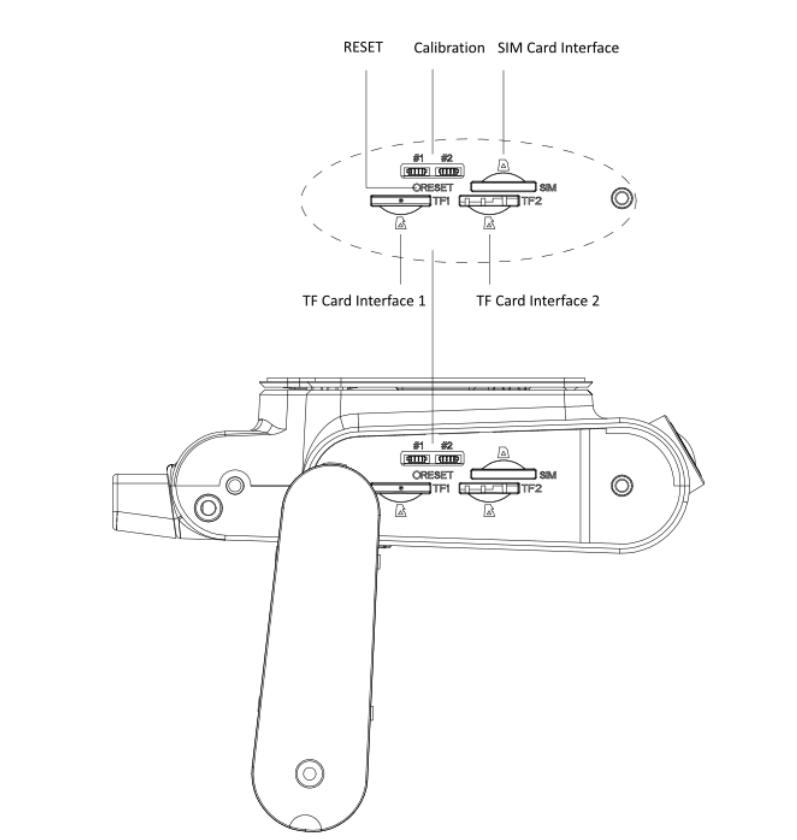

SIM Card Slot -Â 1, Industry Micro SIM, Plug-in type
-

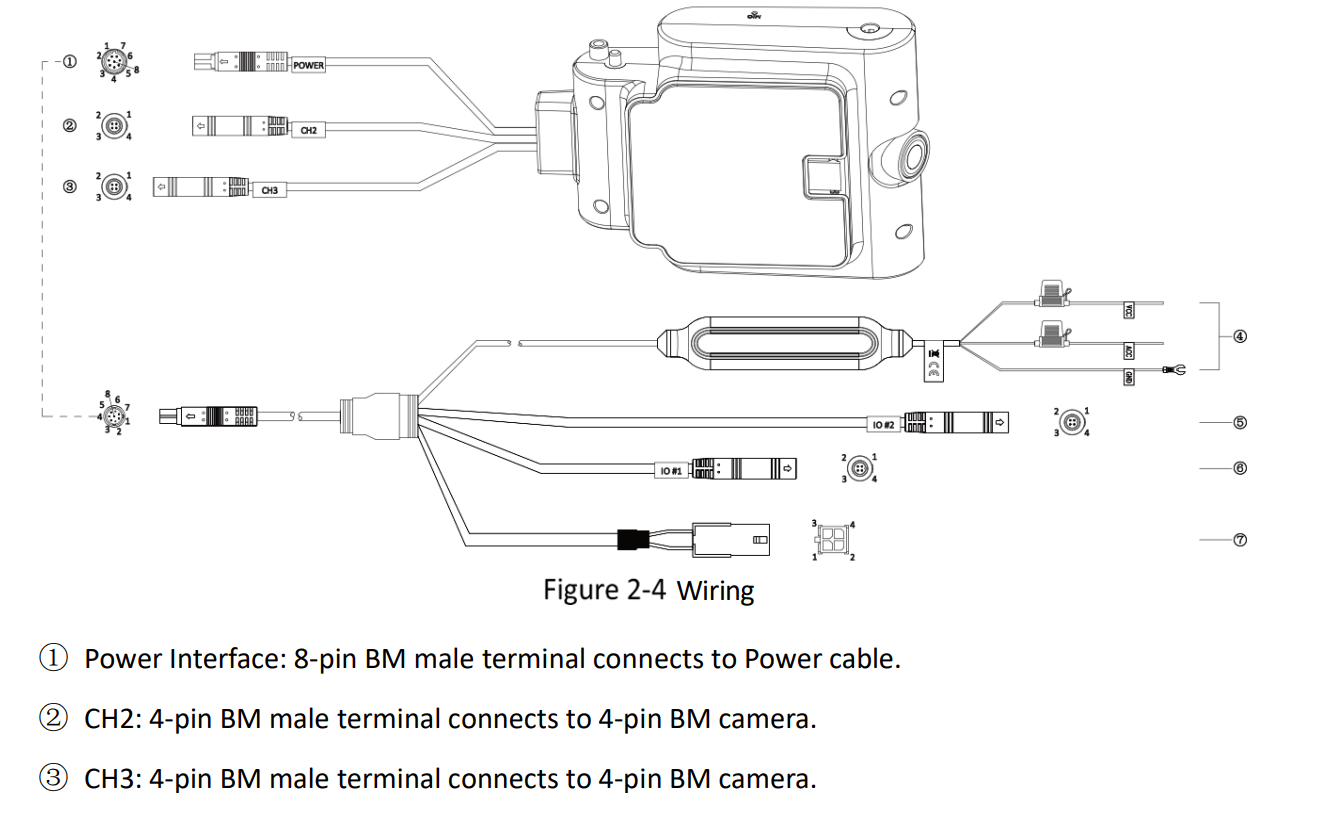

Power Interface -Â 1, 8-pin BM Male Terminal
-
Reset Key -Â 1, Pinhole button
-
RS-232 -Â 1
-
Dial-Up - AE-DI2032-G40(B)(EN): Europe:
        FDD-LTE: B1, B3, B5, B7, B8, B20
        TDD-LTE: B38, B40, B41
        UMTS: B1, B5, B8
        GSM/GPRS/EDGE: 900/1800 MHz
        AE-DI2032-G40(B)(SA): Latin America :
        FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B28, B66
        TDD-LTE: B40
        UMTS: B1, B2, B5, B8
       GSM/GPRS/EDGE: 850/900/1800/1900 MHz
 Warning: The device requires industrial SIM card (MP2). The ordinary SIM card (MP1) is prohibited. We are not responsible for any problem caused by the use of any ordinary SIM card.
Â
-
Wi-Fi Protocol -Â 802.11 b/g/n
-
Driving Status Monitoring (DSM) -Â Distraction prompt detection, fatigue driving (eyes closed), seatbelt unbuckled detection etc.
-
Advanced Driving Assistance System (ADAS)
Forward Collision Warning (FCW)
Pedestrian Collision Warning (PCW
-
System -Â Embedded Linux
-
Language -Currently only supports English
*The language includes APP interface language and voice reminder.
-
Storage -Â Dual TF Card (up to 256GB for each)
Class10 or above is recommended
-
Sensor -Â Six-axis G-Sensor
*Harsh acceleration, Harsh deceleration and Harsh cornering
-
Image Format -Â JPEG
-

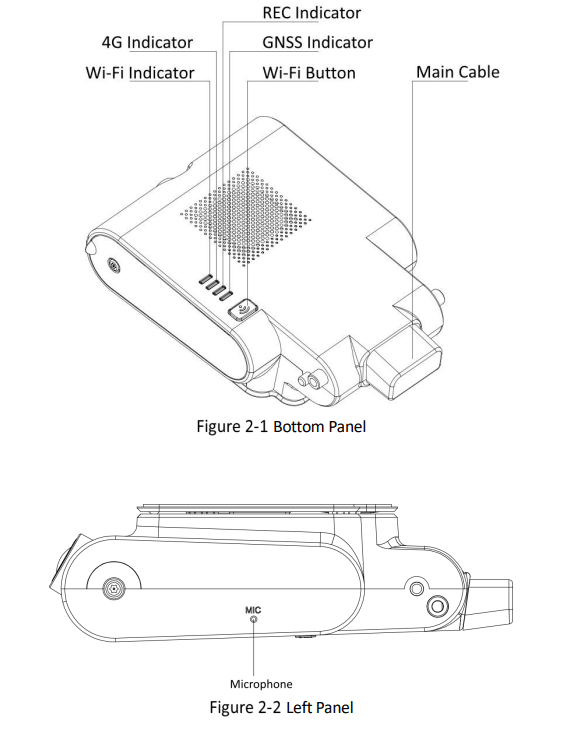

Indicator
Positioning Status Indicator (GNSS)
Off: no positioning signal
Steady blue: the positioning signal is normal
Recording Status Indicator(REC)
Off: The built-in or extended camera stops / fails
Steady blue: The built-in or extended camera is recording normally
Network Status Indicator (4G)
Off: No 4G signal
Steady blue: 4G signal and the platform connection normal
Flashing blue: 4G signal normal but no platform connection
Wi-Fi Status Indicator
Off: Wi-Fi AP closed
Steady blue: Wi-Fi AP open and APP connection normal
Flashing blue: Wi-Fi AP open but no APP connection
-
Protection Level
IP4X
*The dashcam is not waterproof
-
Power Supply - DC 10V~16V/20V~36V ( P<12W )
-
Product Dimension123.0 mm×85.0 mm×38.9 mm (4.8"×3.4"×1.5")
-
With Package Dimension223 mm×153 mm×63 mm (8.8"×6.0"×2.5")
-
Operating Temperature-20°C to 60°C (-4°F to 140°F)
-
Operating Humidity10% to 95% (non-condensing)
-
Net WeightApprox. 270 g (0.6 lb.)
-
With Package WeightApprox. 900 g (2.0 lb.)
