An extensive range of scopes to suit all calibers and disciplines.

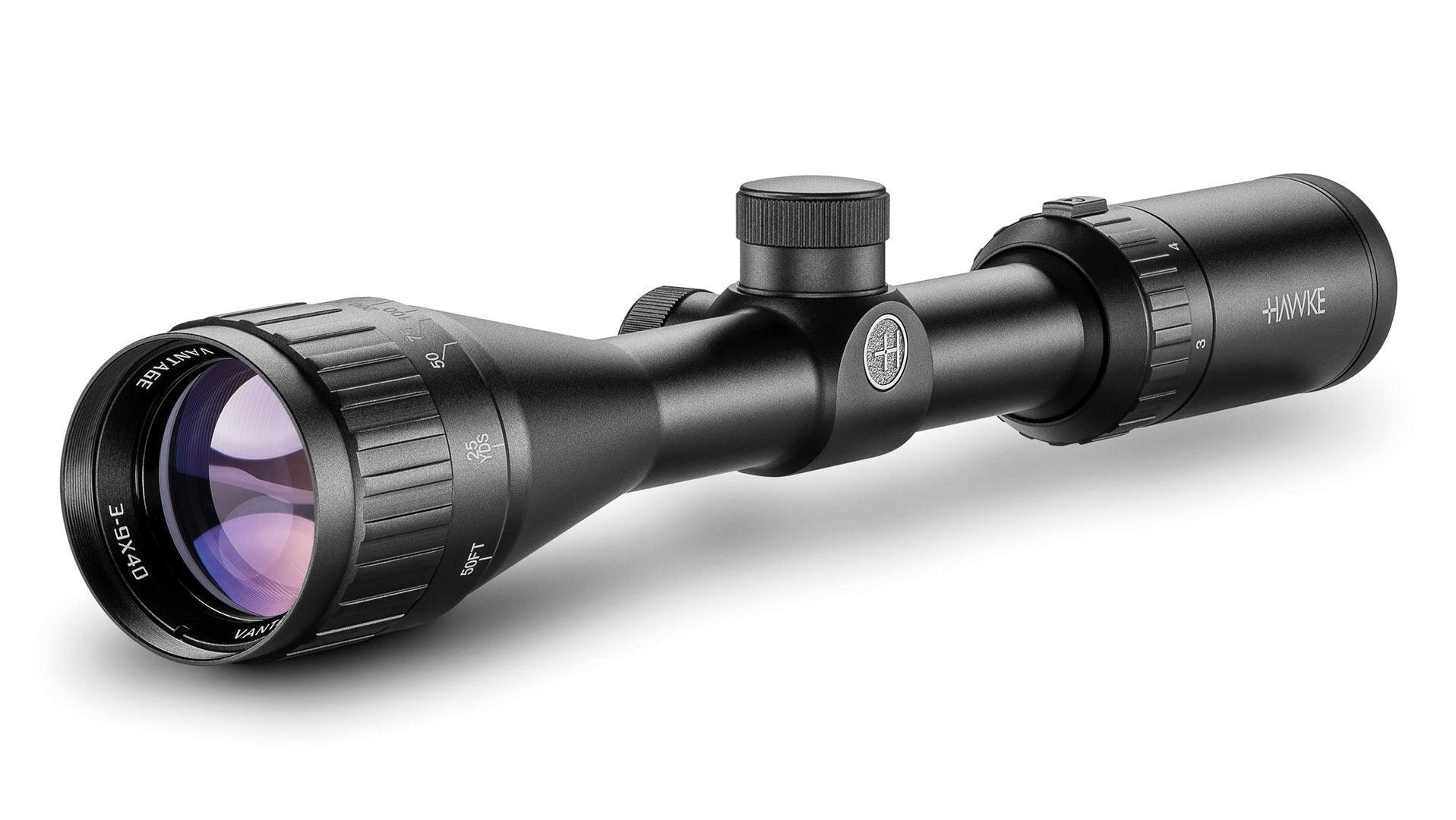

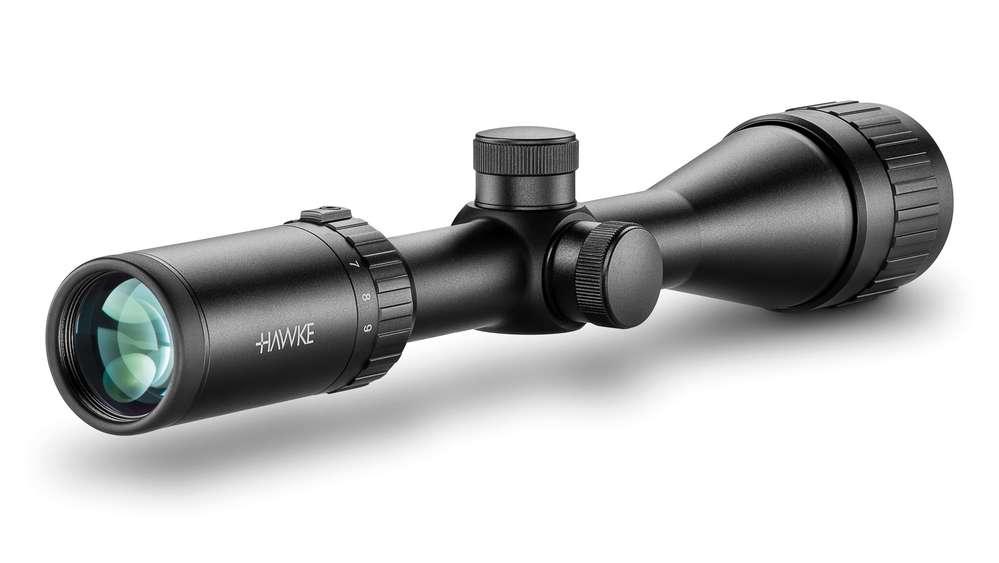

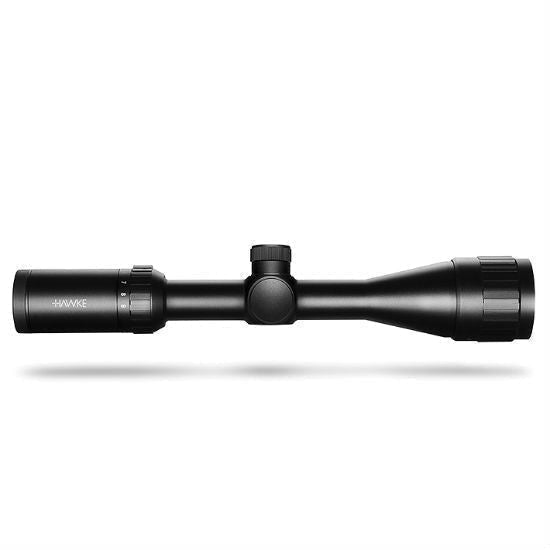

All Vantage riflescopes feature our H2 optics in a variety of configurations.
- Capped Low-Profile Turrets
- 1 Inch Mono-Tube Chassis

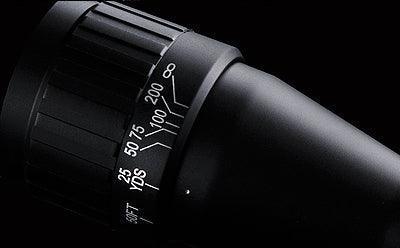

- Adjustable Objective For Parallax Correction
- 11 Layer Fully Multi-Coated Lenses

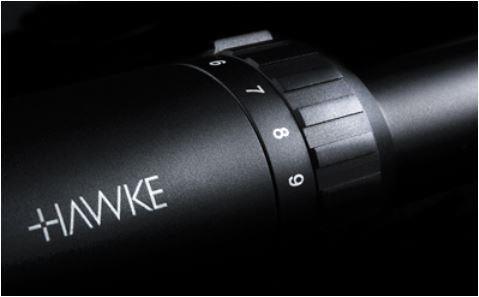

- High Torque Zoom Ring
- Fast Focus Eyebell
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All caliber rated.
Hawke No-Fault Lifetime Warranty.
Mil Dot Reticle
The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction.
--
--
Technical Specifications;
--
|

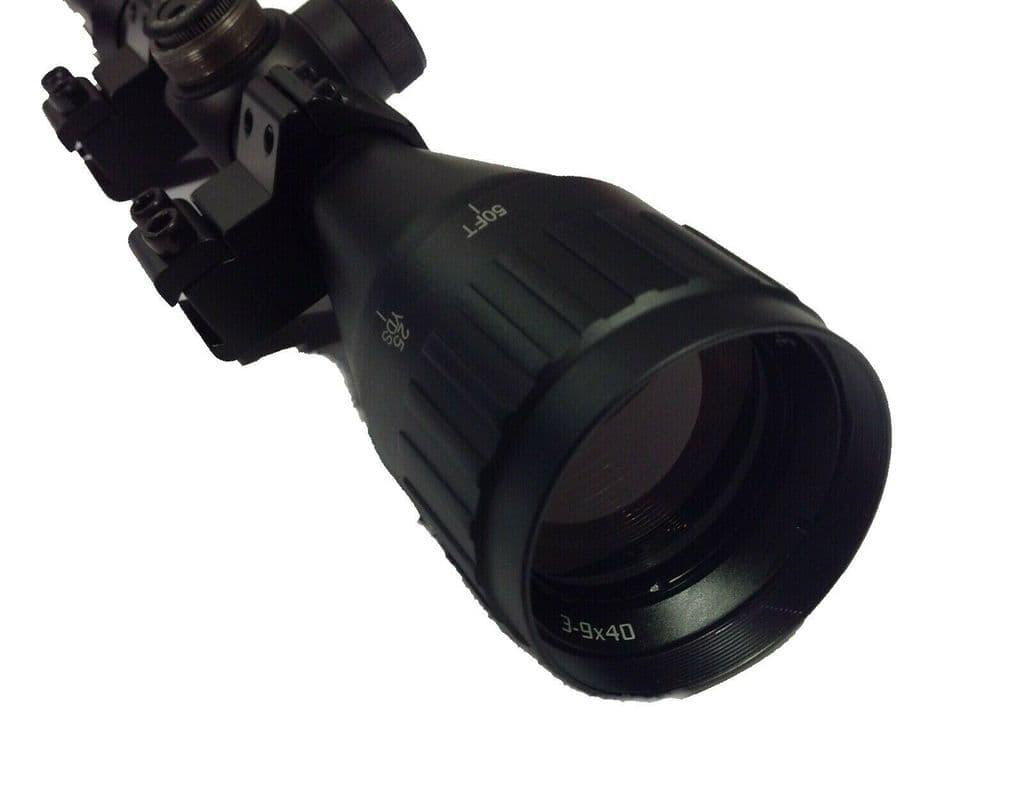

Objective Lens |
40mm |
|
Reticle |
Mil Dot |
|
Parallax |
Adjustable Objective |
|
Magnification |
3 - 9x |
|
Optical System |
System H2 |
|
Scope Tube |
1 Inch |
|
Illumination |
N/A |
|
Field of View |
39 - 12.7ft @100yds 13 - 4.2m @100m |
|
Field of View |
7.4 - 2.4° |
|
Eye Relief |
3.5in 90mm |
|
PX/Focus |
10yds - ∞ 9m - ∞ |
|
Weight |
17oz 482g |
|

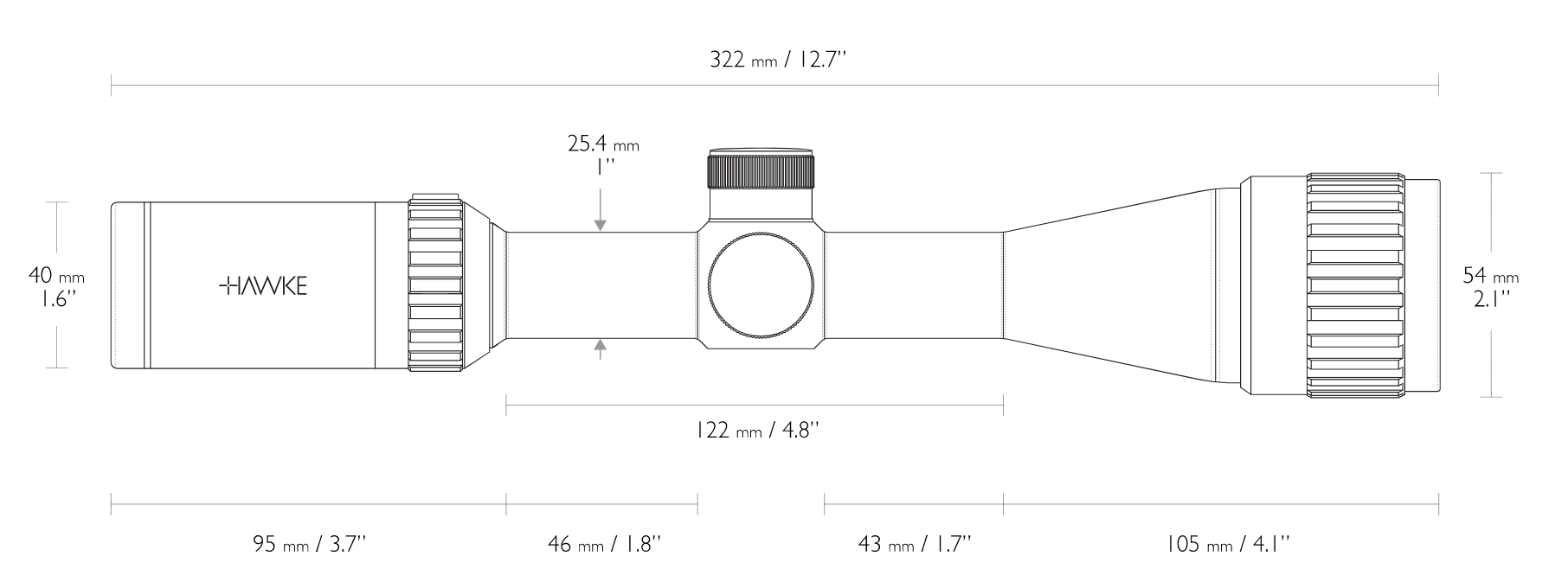

Length |
12.7″ 322mm |
|
Turret Caps |
YES |
|
Click Value |
1⁄ 4MOA |
|
Elevation Turret Clicks (max) |
100 MOA |
|
Windage Turret Clicks (max) |
100 MOA |
|
Exit Pupil |
0.52 - 0.17″ 13.3 - 4.4mm |
|
Ocular Type |
Fast Focus |
|
Power Selector |
Knurled Posi-Grip |
|
Lens Coating |
Fully Multi-Coated - 11 Layers |
|
Focal Plane |
SFP (Second Focal Plane) |
