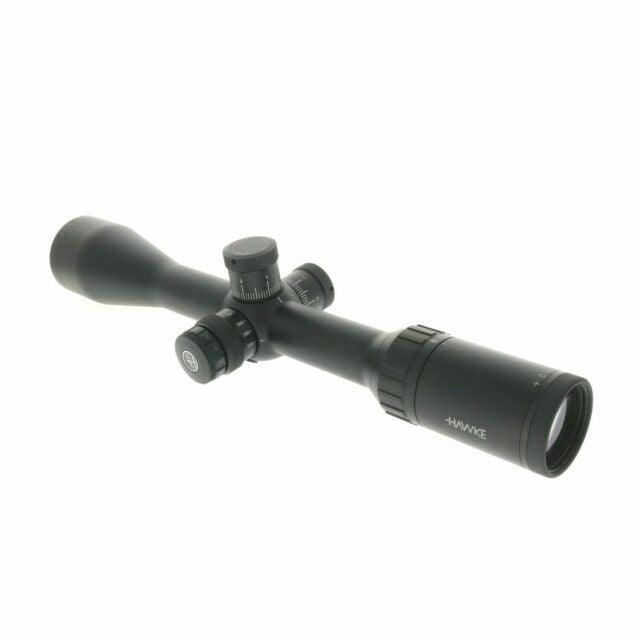

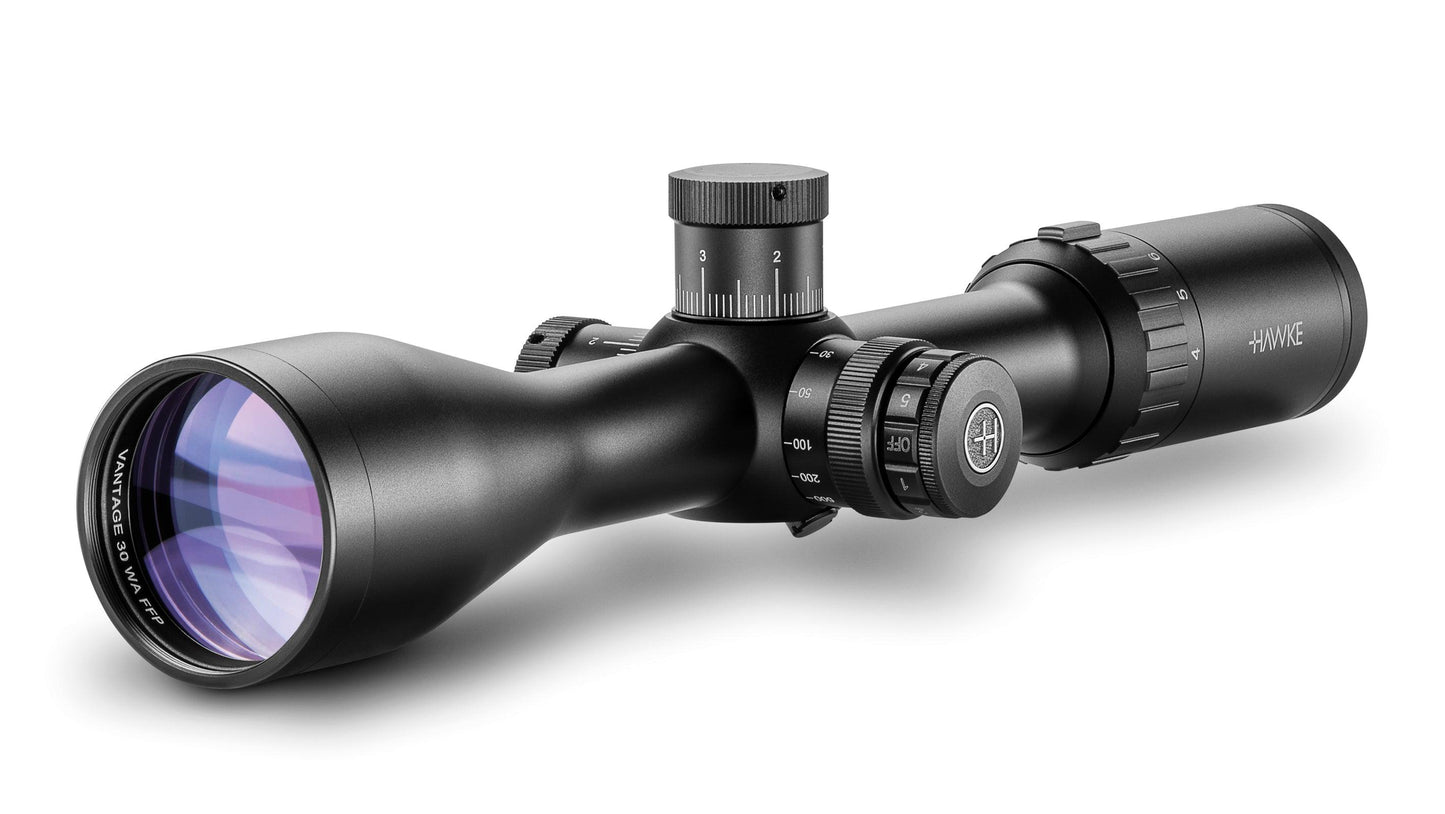

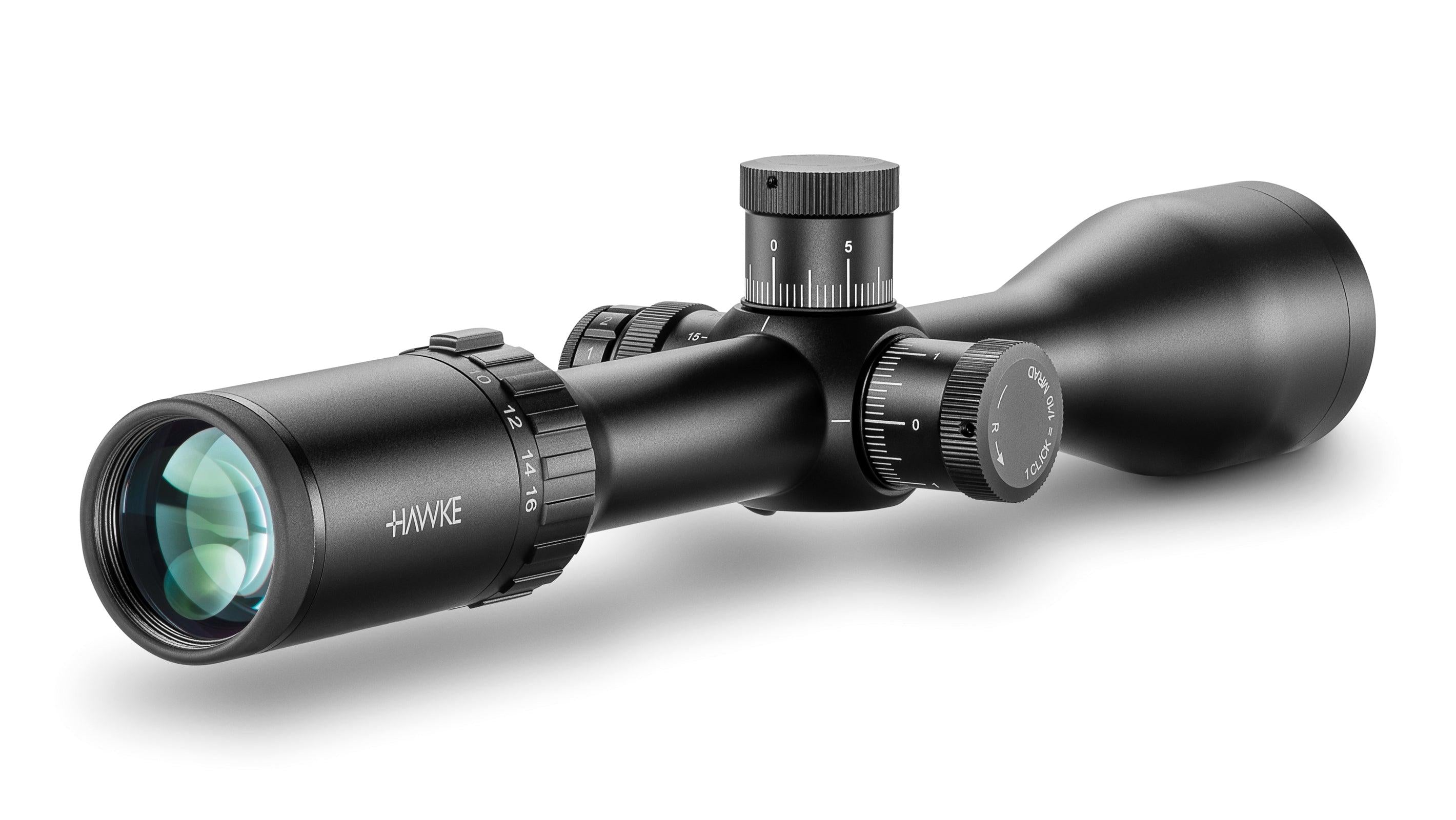

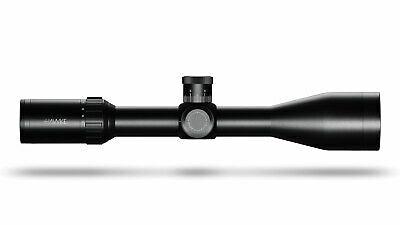

VANTAGE 30 WA FFP 4-16X50 SF IR MIL DOT - 14300

An extensive range of scopes to suit all calibres and disciplines.

All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

• Exposed Locking Turrets
• First Focal Plane (FFP)
• 30mm Mono-Tube Chassis
• Wide Angle
• Side Focus
• Illumination
• 11 Layer Fully Multi-Coated Lenses

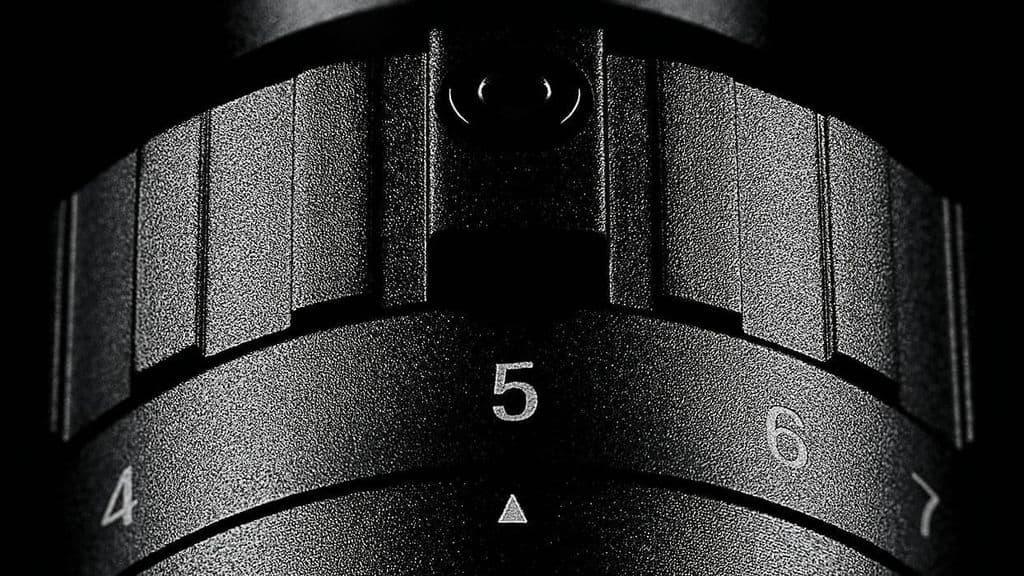

• High Torque Zoom Ring

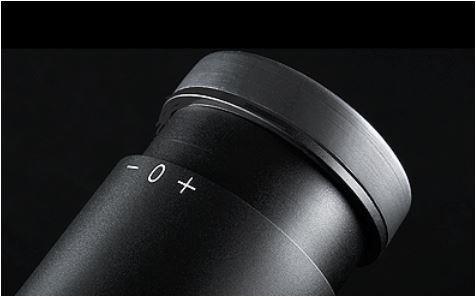

• Fast Focus Eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

Benefits of Glass Etched Reticles and Illumination

Etched glass reticle - The reticle is laser etched onto the lens glass giving a beautiful crisp and clear view, much more so than with a standard wire reticle.

The etching also makes it totally immune to recoil shock - it will never break or come loose as can happen with wire reticles.

In addition it eliminates all internal light reflection from use of the IR function, this again is a problem with wire reticle scopes.

Illuminated reticle function

• In low light or very bright light targets can appear dark and shadowed.
• The standard black reticle in such situations is very hard to contrast against the target, especially if you are taking a shot under pressure on a sudden target of opportunity and/or moving target.

Using illumination, red in low light and green in low and bright, helps you get sharp reticle over target contrast and massively improve the aim point and speed.

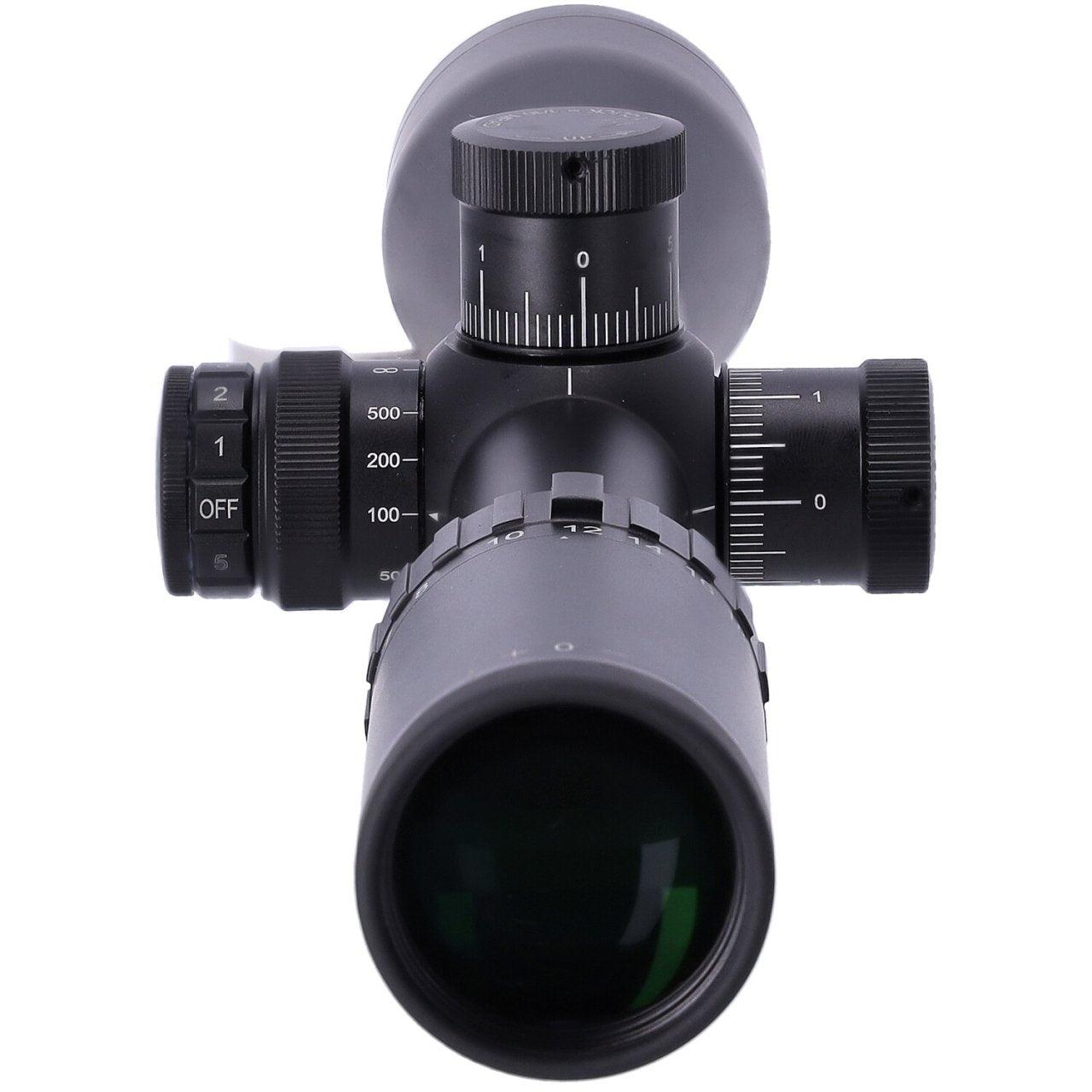

Fast and easy IR and SF control by side turret. 5 levels red and green plus off for plain black.

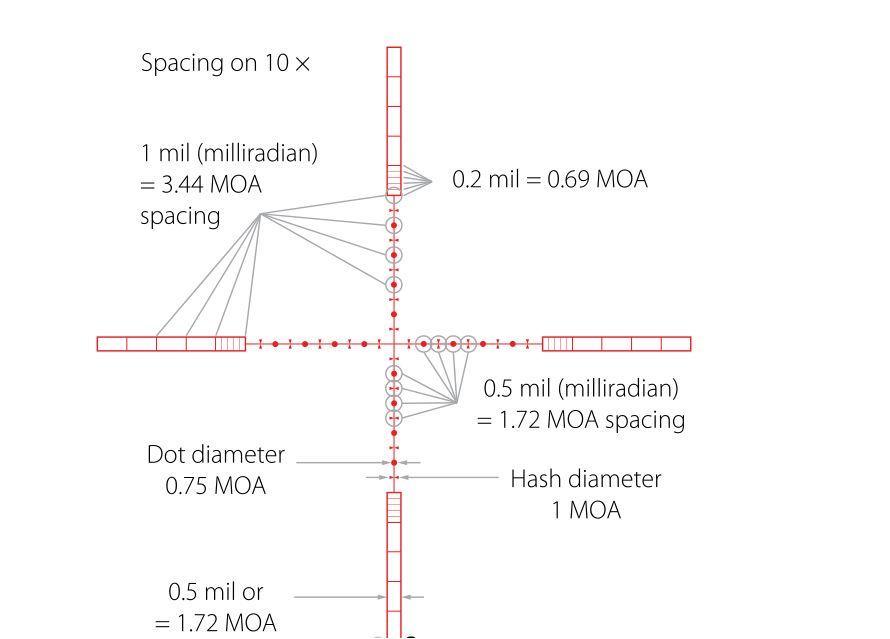

FFP Half Mil Dot Reticle

The FFP Half Mil Dot reticle was developed specifically for first focal plane optical systems and based around the common principles of mil spaced reticles. With half mil spaced markings out beyond 5 mil in all directions, the FFP Half Mil Dot is a versatile reticle that provides aim points no matter how extreme the conditions.

Hollow posts are segmented into mil spacing and 0.2 mil spacings, so can be used for bracketing and rangefinding.

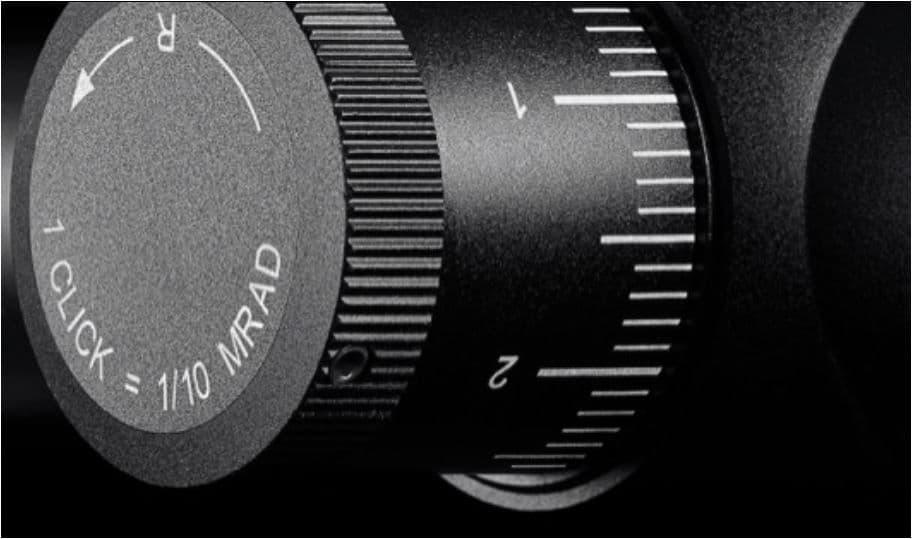

The mil spaced reticle and 1/10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 mil spacing on the reticle, also known as 1 MRAD. Because of FFP this is true on all magnifications.
